Self Priming Monoblock
- Domestic Use
- Pressure Boosting
- Civil Applications
- Small Gardens
- Designed to perform efficiently in low voltage
- Economy – High Discharge – High Head Models to Suit the Requirements
- Built in with O.P
- Lower Power Consumption
| Power Range | 0.25 HP – 1.0 HP |
| Maximum Total Head | 48 Meter |
| Maximum Discharge | 65 LPM. |
| Maximum Suction | 7 Meter |
| Pump Size (Suction X Delivery) in mm | 25 X 25 |

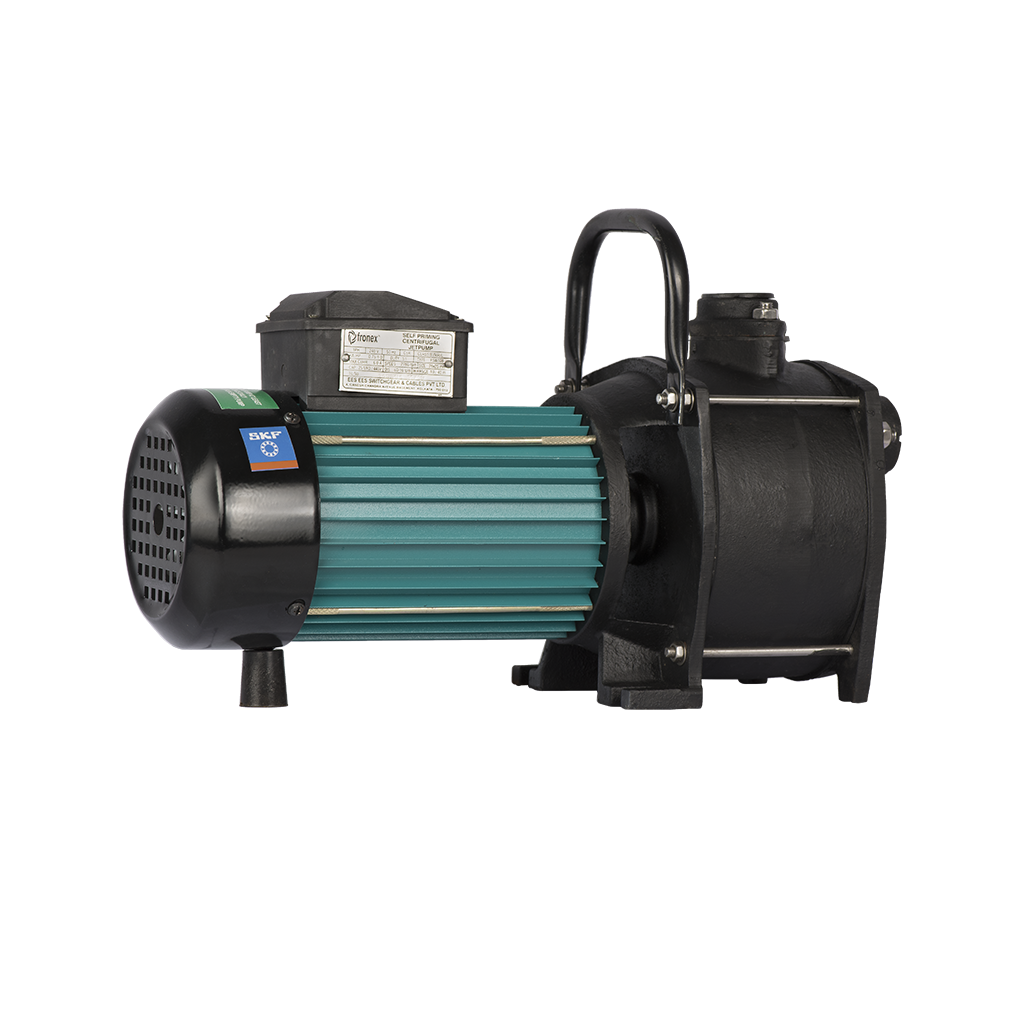

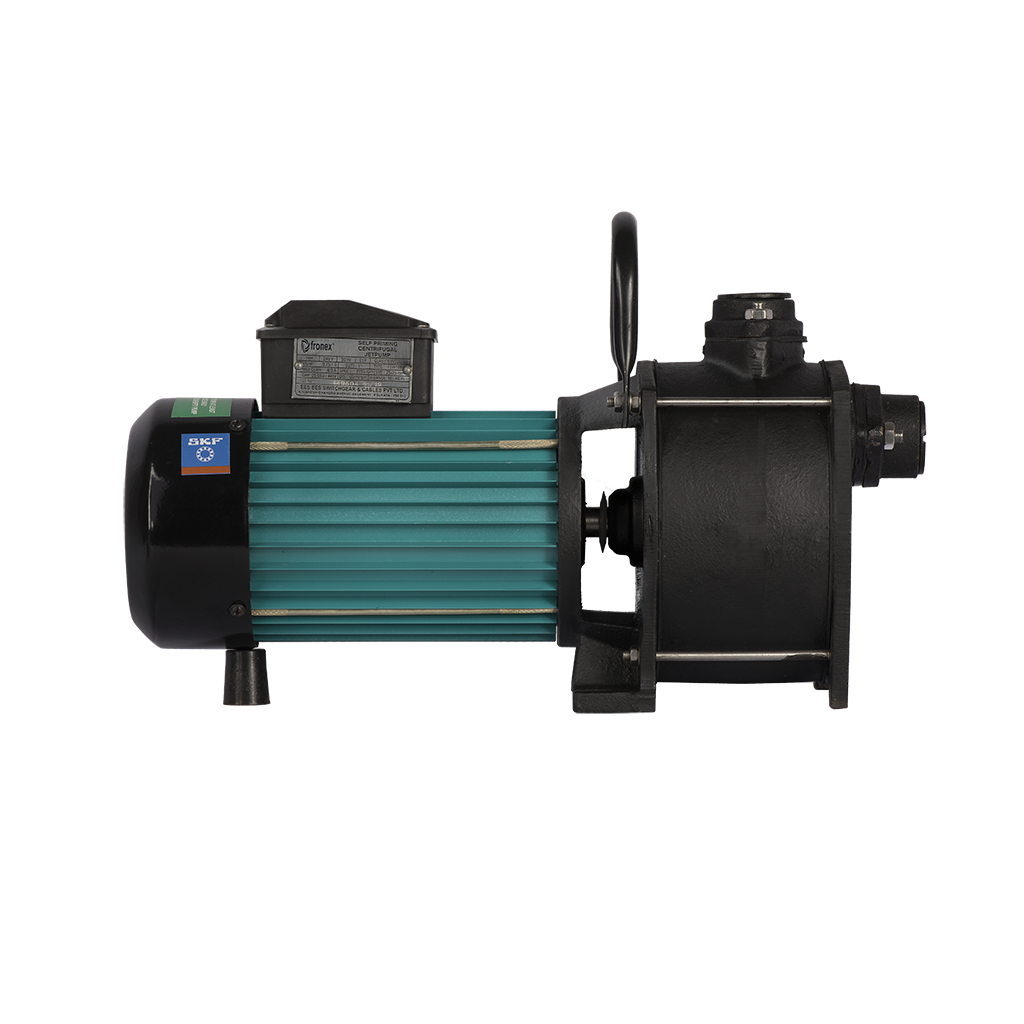

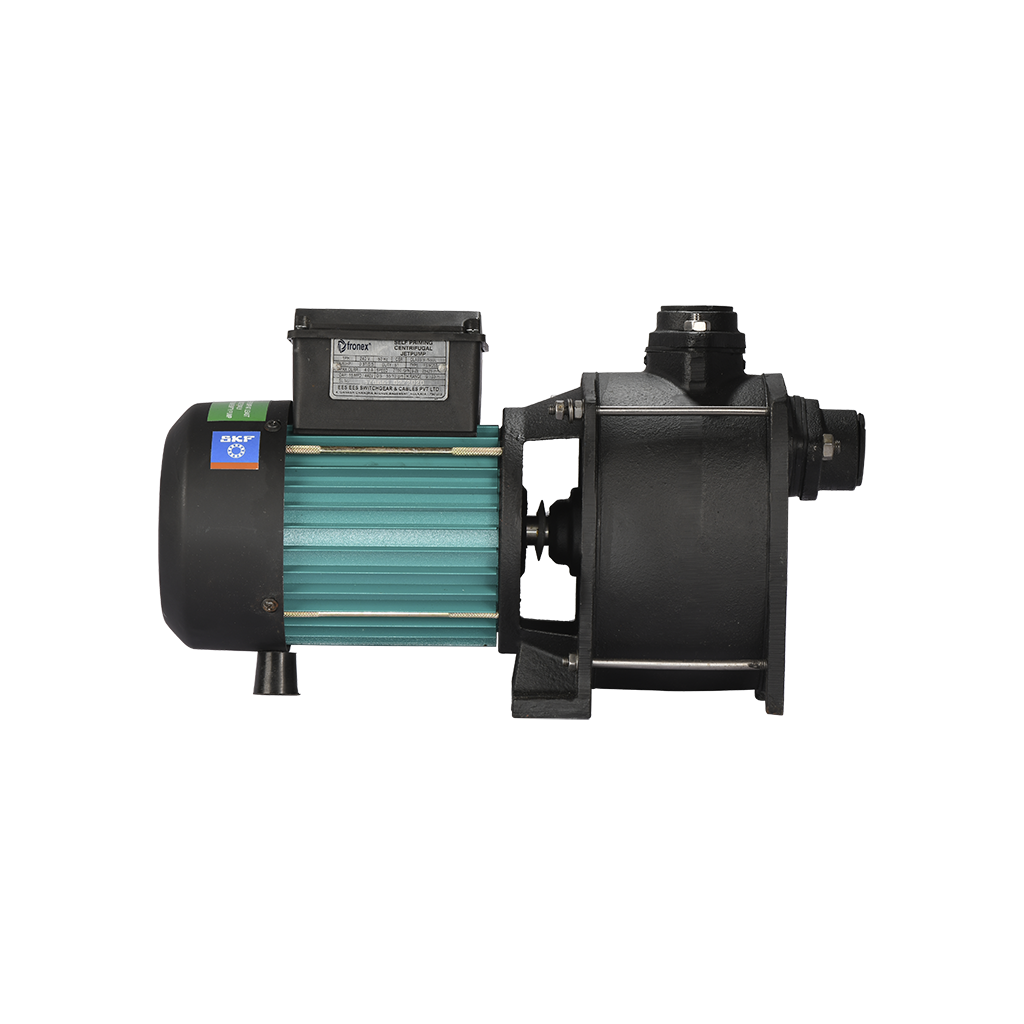

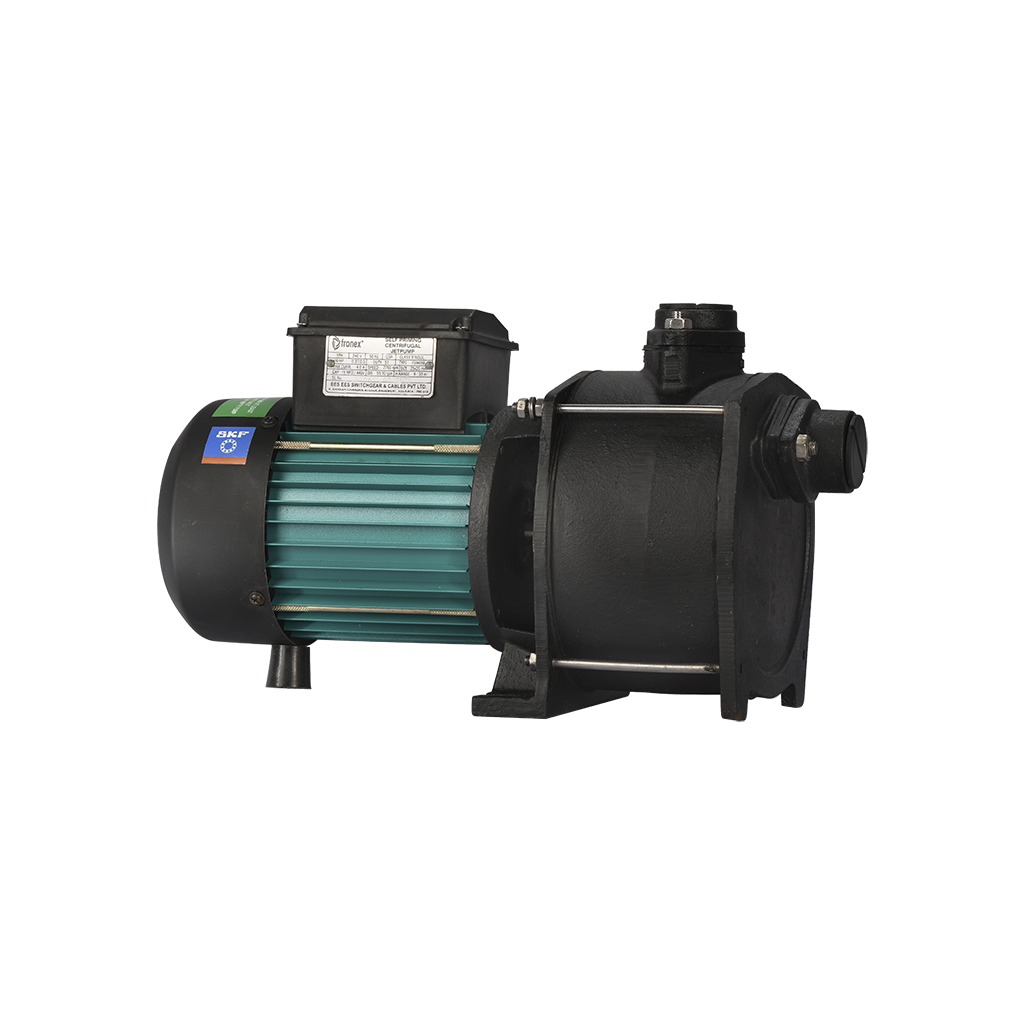

Shallow Well Pump
- Shallow Well
- Drinking Water Supply
- Gardens
- Housing
- Cl Body designed for better cooling and withstand normal temperature during the run.
- High Quality stamping, designed low voltage operations
- Dynamically balanced impeller with rust proof for longer life
- Low power consumption
| Power Range | 0.5 HP-1.0 HP |
| Maximum Total Head | 40 Meter |
| Maximum Discharge | 60 LPM |
| Maximum Suction | 9 Meter |
| Pump Size (Suction X Delivery) in mm | 25 X 25 |
High Suction Pump
- Domestic Water Lifting
- Long Distance Horizontal Water Suction
- Quick & More suction capacity
- Noiseless operation
- No need to fit food value
| Power Range | 0.5 HP-1.0 HP |
| Maximum Total Head | 40 Meter |
| Maximum Discharge | 60 LPM |
| Maximum Suction | 9 Meter |
| Pump Size (Suction X Delivery) in mm | 25 X 25 |
Jet Pump
- Domestic Use
- Gardens
- Civil Applications
- Fountains
- Available in Twin type & Oacker type
- Impeller well balanced with rust proof coating for longer life
- Longer life
- Well designed jet ejector ( Jet, Ventury & Nozzle ) and pressure value consistent performance high head and silent operation are the special features
| Power Range | 1.0 HP |
| Maximum Total Head | 43 Meter |
| Maximum Discharge | 35 LPM |
| Maximum Suction | 9 Meter |
| Pump Size (Suction X Delivery) in mm | 32 x 25 x 25, 40x32x25 |

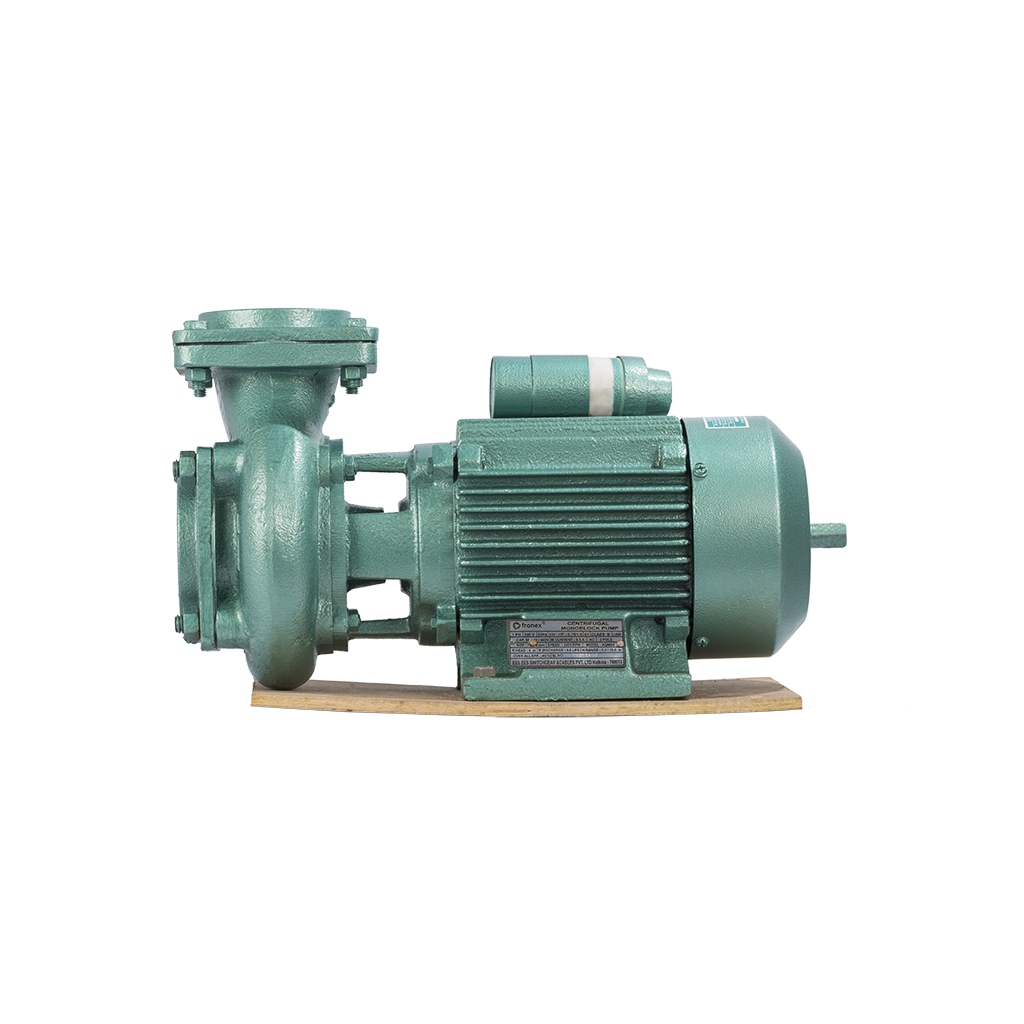

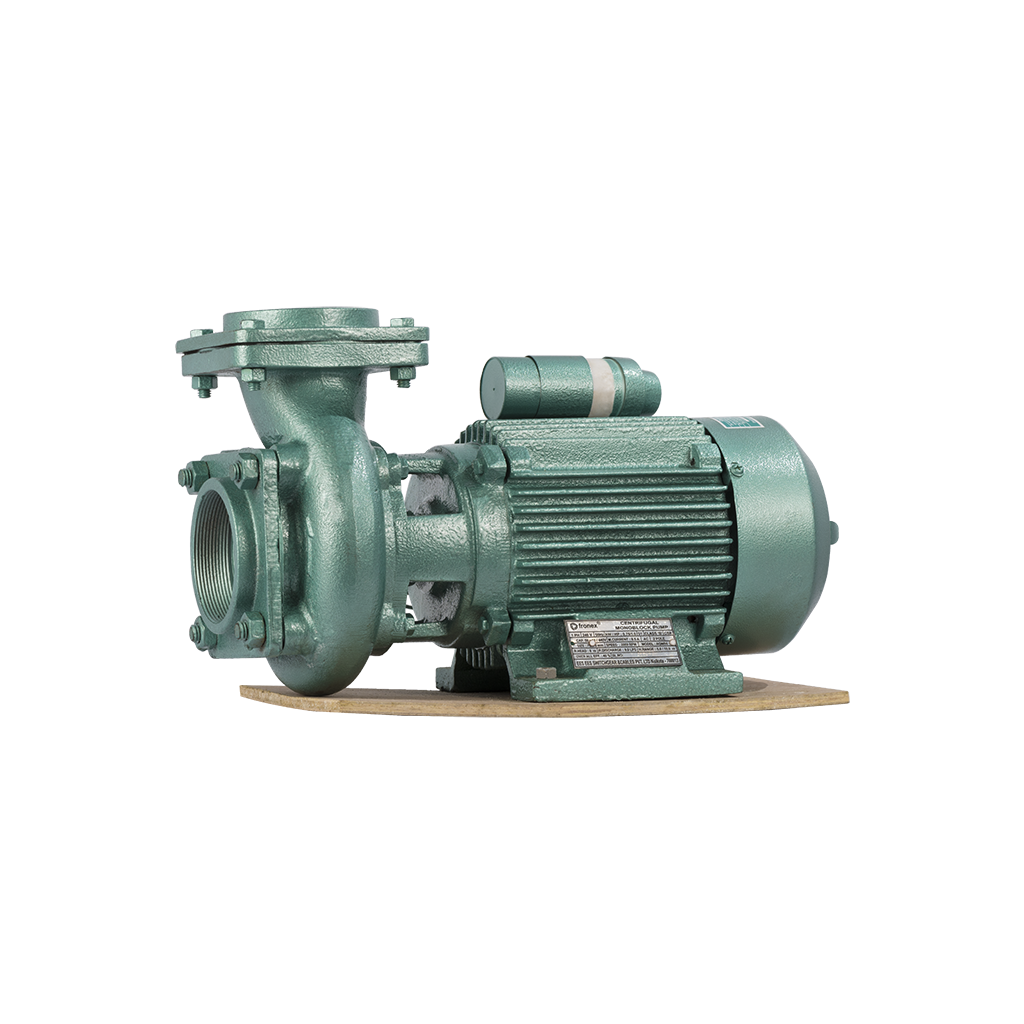

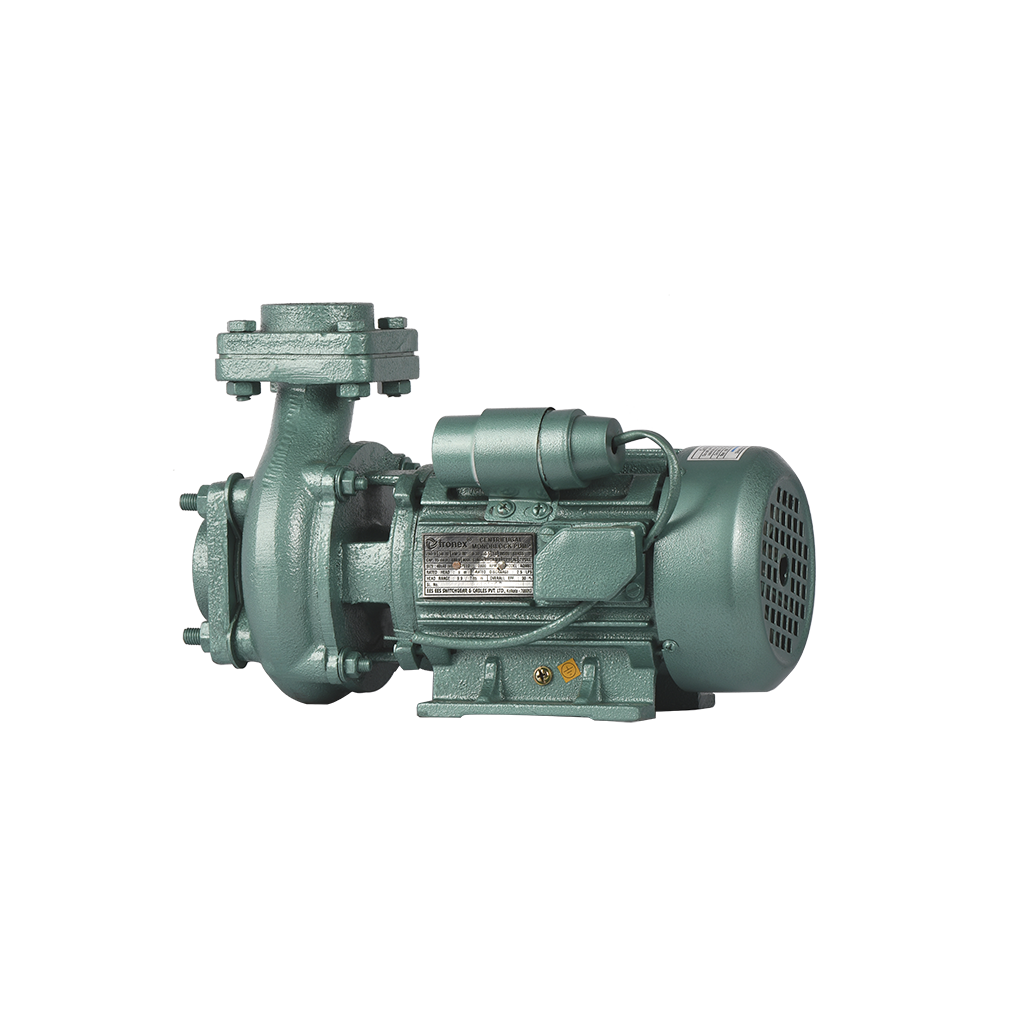

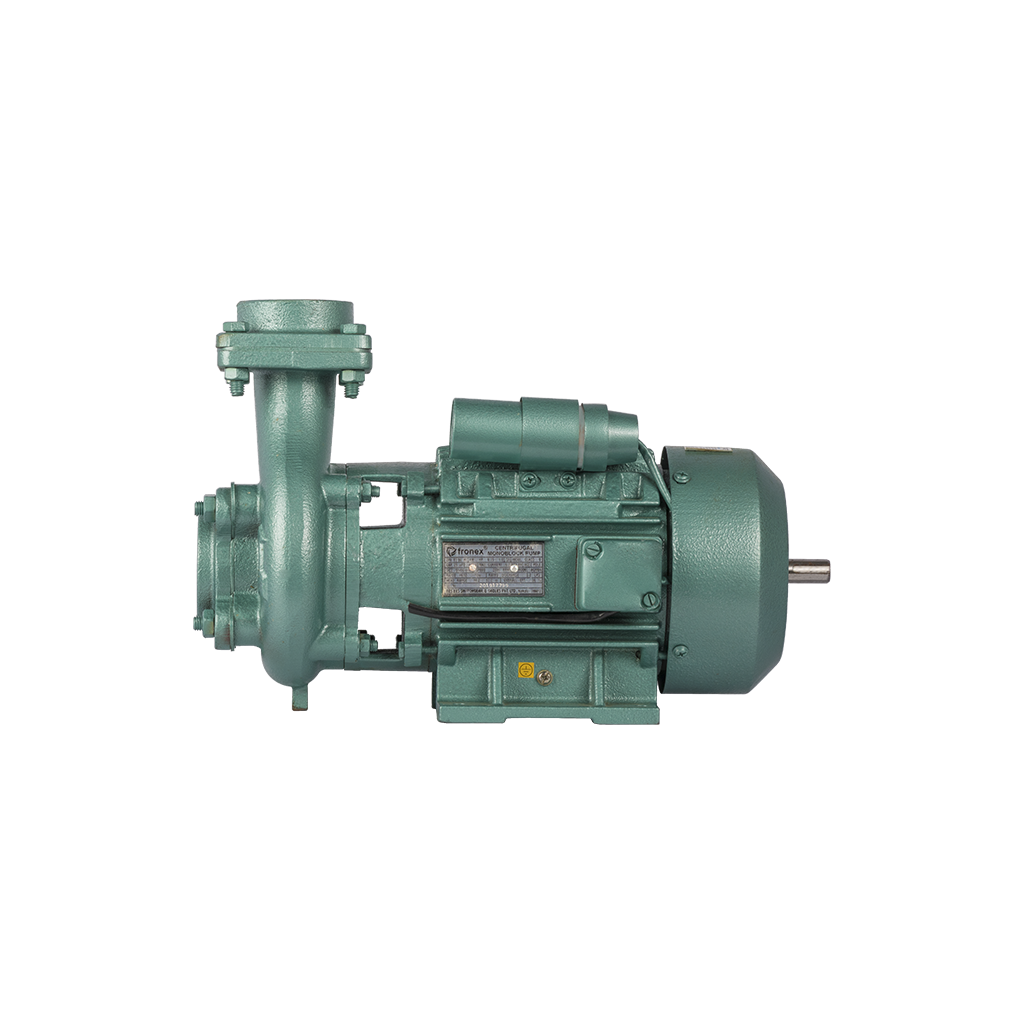

Agri Monoblock
- Agriculture Use
- Domestic Use
- Industrial Use
- Fountains
- Civil Applications
- Sprinkler
- Noise level test to measure & control the bearing sound
- An anti-Corrosive Coating in Pump Portion
- Dynamically Balanced Rotor
- Moisture Proof Coating in Winding Coils
- T.O.P – “THERMIC” fitted
- Trouble free Operation for long period operation
| Power Range | 0.5 HP – 2.0 HP |
| Maximum Total Head | 30 Meter |
| Maximum Discharge | 820 LPM |
| Maximum Suction | 6 Meter |
| Pump Size (Suction X Delivery) in mm | 25 x 25, 32X25, 40X40, 50X50, 65X50, 80X65, 80X80 |
V3 Submersible Pump
- Domestic Use
- Industrial Use
- Irrigation
- Rural Water Supply
- Fountains
- Ponds & Gardens
- Lower Power Consumption
- Long durable due to S.S. body
- Withstand wide voltage fluctuation
- Light in weight
- Attractive outlook
| Power Range | 0.5 HP – 1.5 HP | |
| Maximum Total Head | 100 Meter | |
| Maximum Discharge | 90 LPM | |
| Pump Size (Suction X Delivery) | in mm | 25 , 32 |
V4 Submersible Pump
- Domestic Use
- Industrial Use
- Irrigation
- Rural Water Supply
- Fountains
- Ponds & Gardens
- Lower Power Consumption
- Long durable due to S.S. body
- Withstand wide voltage fluctuation
- Light in weight
- Attractive outlook
| Power Range | 0.5 HP – 3 HP (Single Phase) 0.75 HP – 5 HP (Three Phase) | |
| Maximum Total Head | 218 Meter | |
| Maximum Discharge | 420 LPM | |
| Pump Size (Suction X Delivery) | in mm | 25,32,40,50,65 |
V6 Submersible Pump
- Domestic Use
- Industrial Use & Mining
- Fountains
- Sprinkler Systems
- Lower Power Consumption
- Long durable due to graded C.I Pump
- Excellent Performance even at low voltage.
- Attractive outlook
| Power Range | 3 HP – 20 HP | |
| Maximum Total Head | 270 Meter | |
| Maximum Discharge | 1270 LPM | |
| Pump Size (Suction X Delivery) | in mm | 50,65,75,100 |
Openwell
- Domestic Use
- Industrial Use
- Irrigation
- Fountains
• Sp. Hi-flow & Hi-Head Models
• Long durability due to non-corrosive S.S. body
• High discharge and low power consumption
• Excellent performance even at low voltage
• Sp. motor design to prevent winding burn out
| Power Range | 0.5 HP – 3 HP (Single Phase) | |
| Maximum Total Head | 54 Meter | |
| Maximum Discharge | 1440 LPM | |
| Pump Size (Suction X Delivery) | in mm | 1×1, 1×1.25, 1.5×2, 2×2 2.5×2.5, 3×3 |
